PDP Diff Breather Kit | 70 Series

Regular price $179.00 AUD
Regular price Sale price $179.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Product Dimensions

Box Dimensions

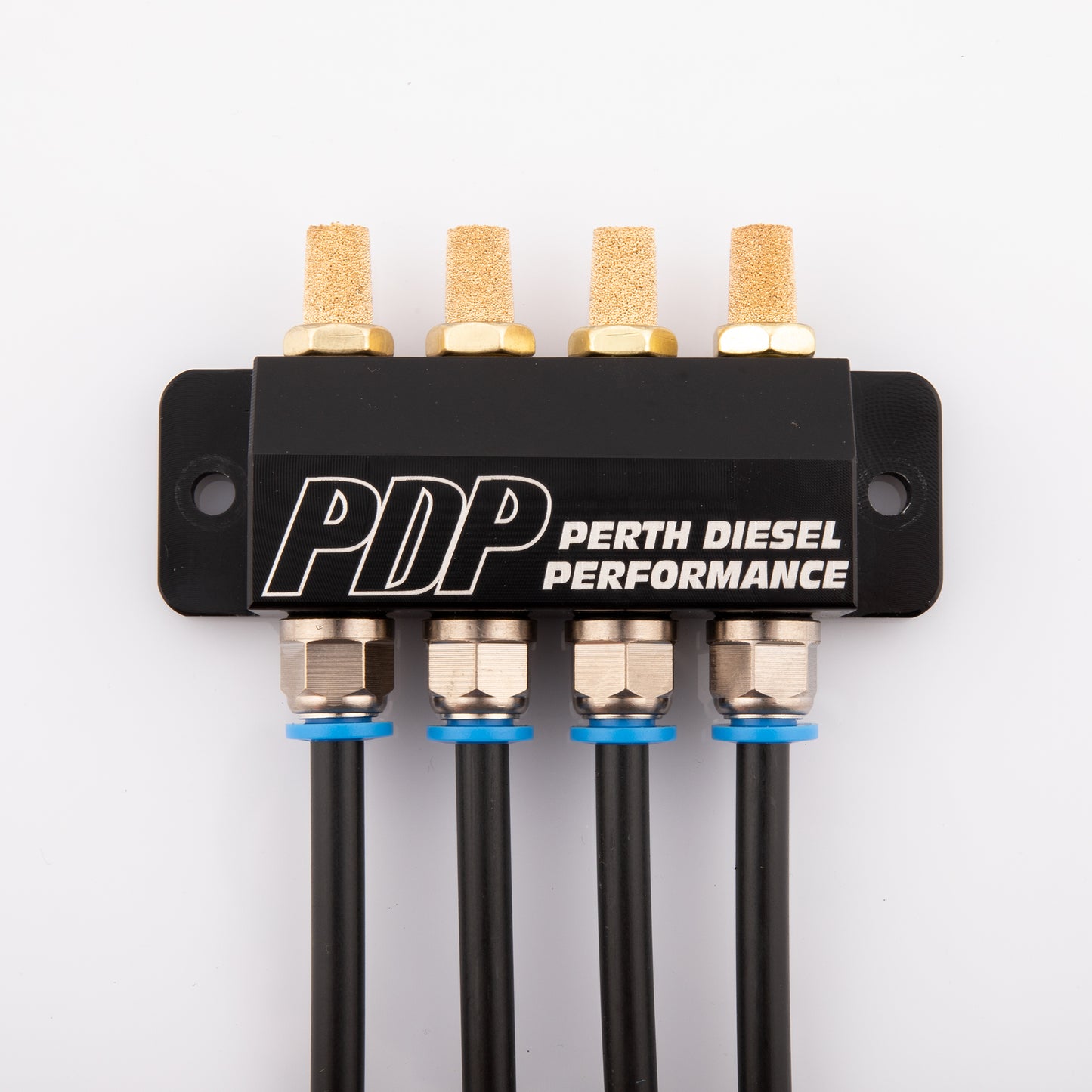

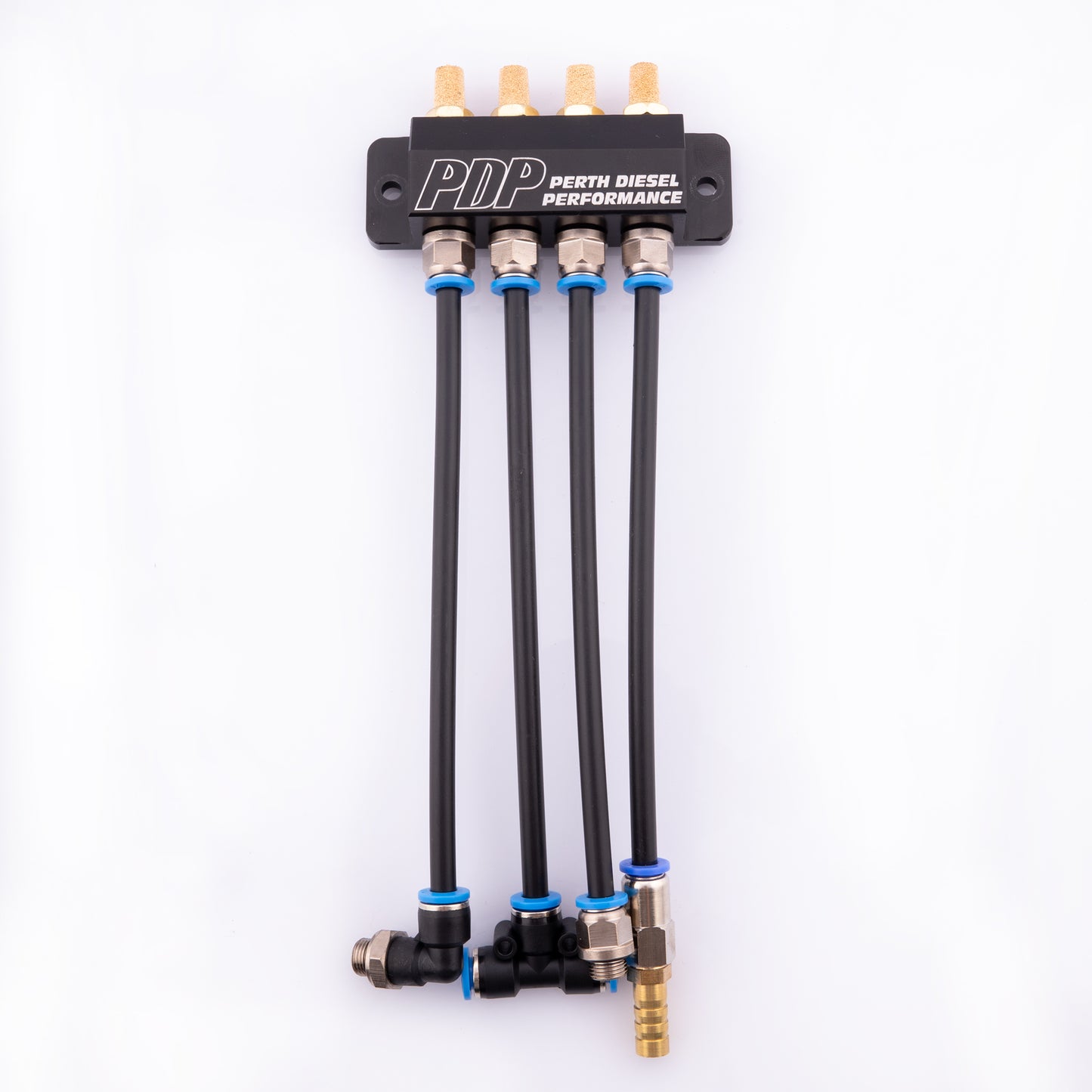

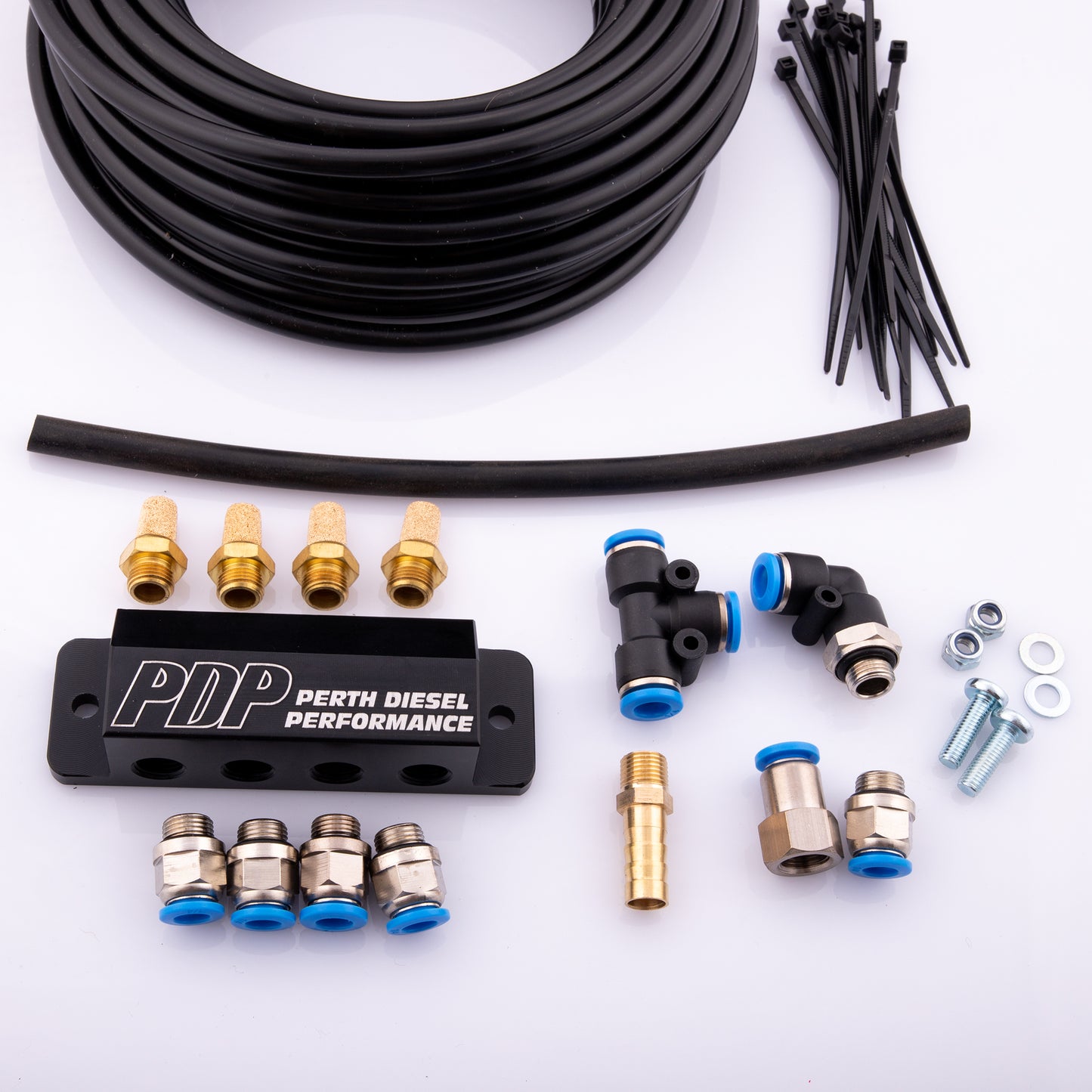

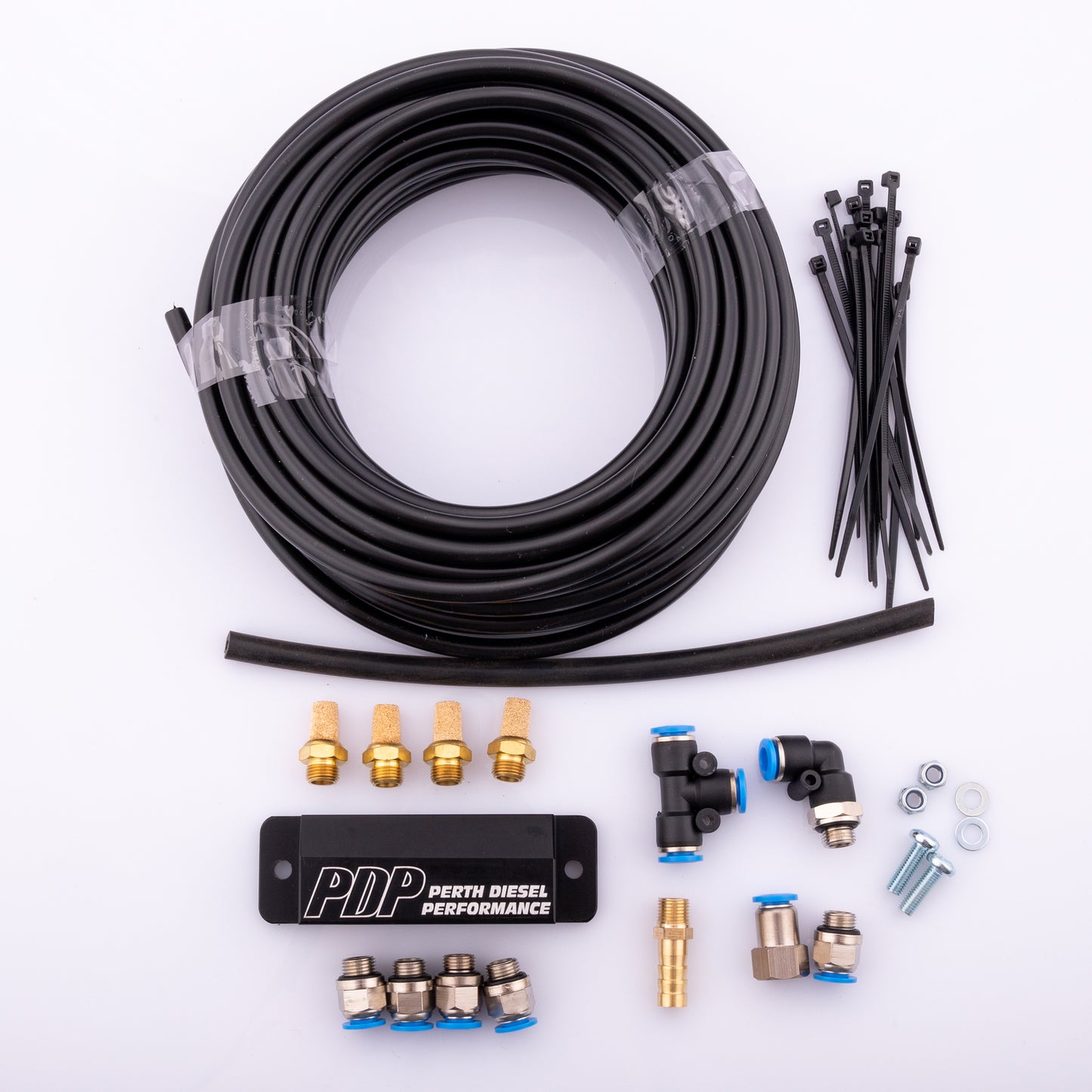

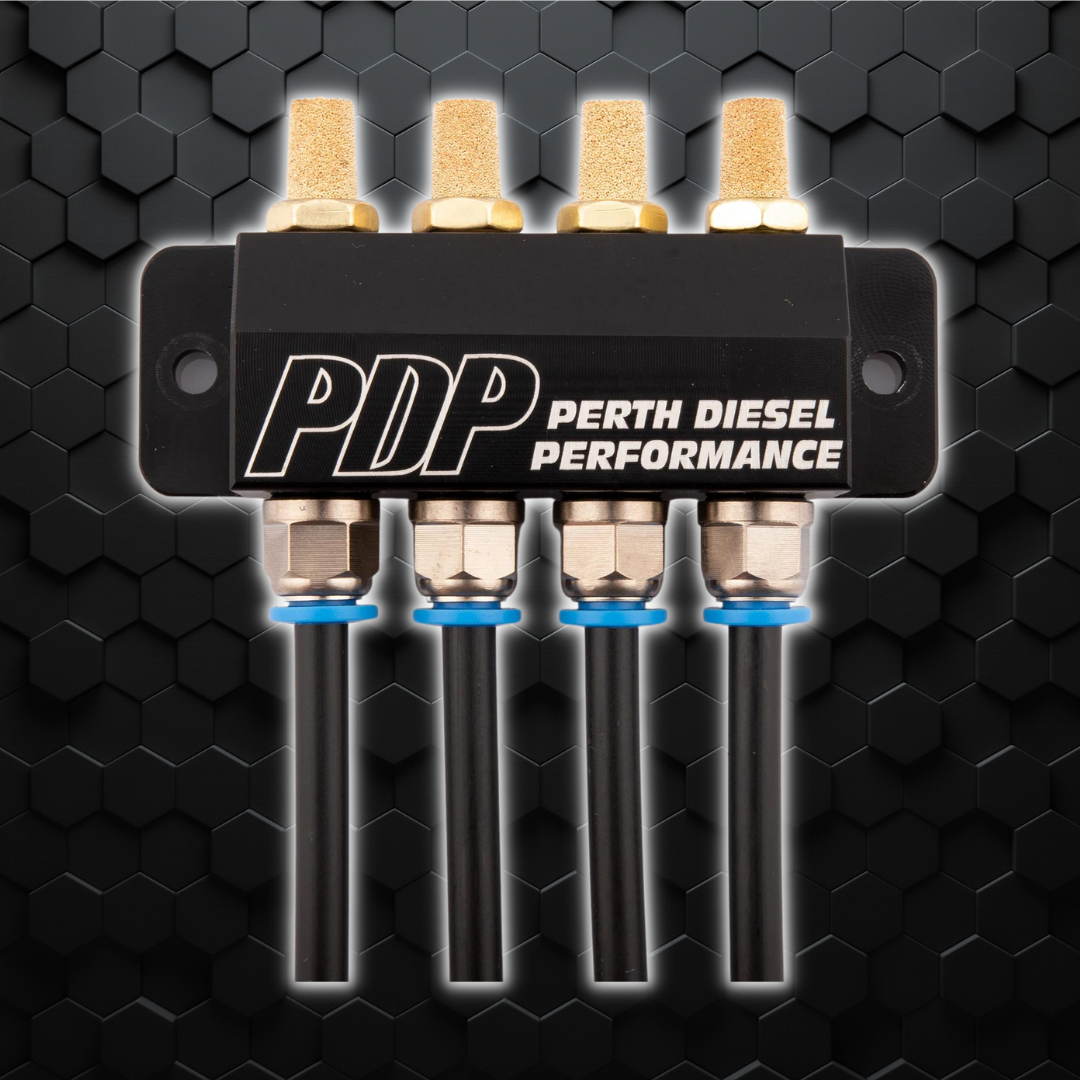

Diff Breather Kit

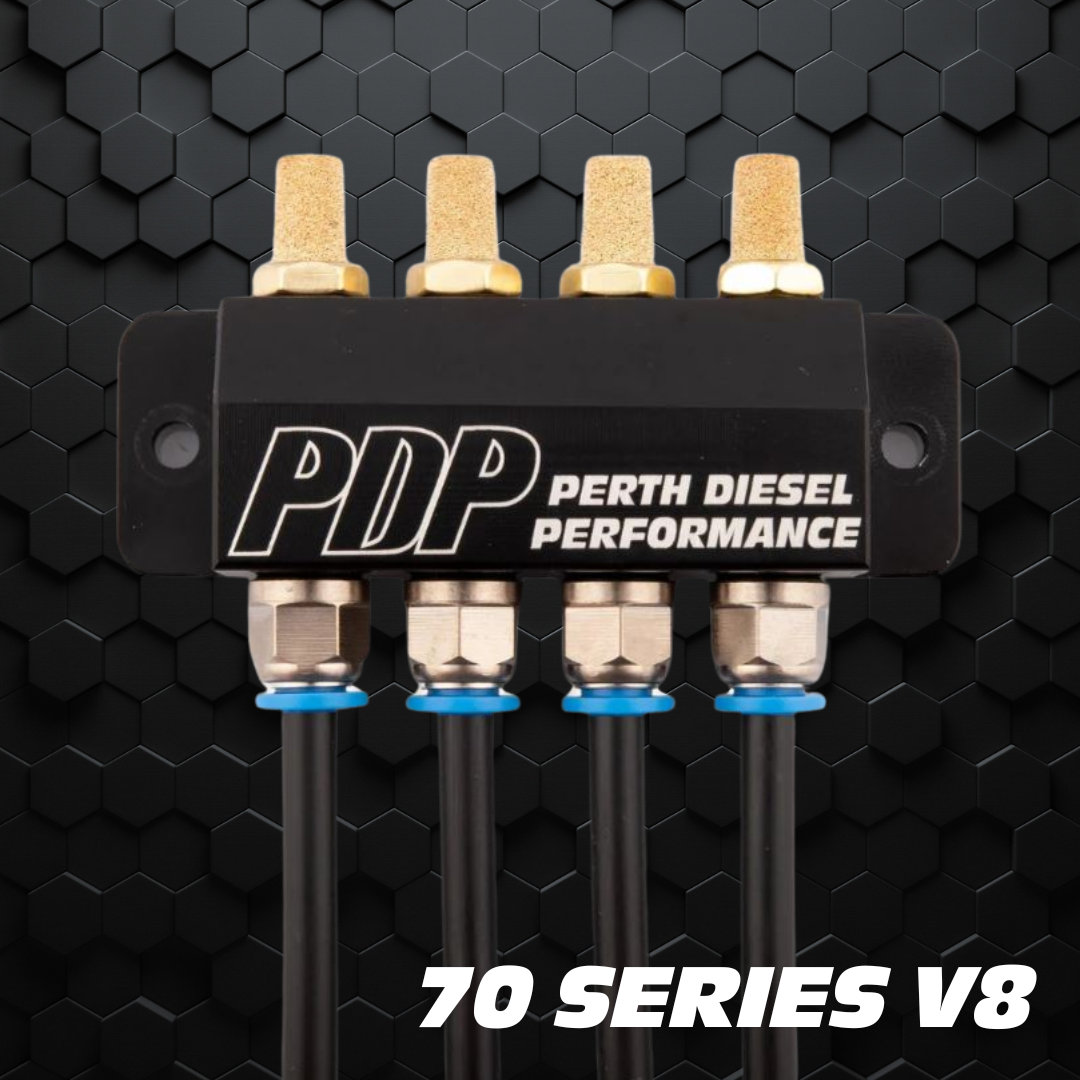

Diff Breather Kit 70 Series Landcruiser

Suits front & rear diff, front and rear locker motor (GXL) and also a breather for the gearbox/transfer case.

The gearbox, diffs and locker motors have breathers to allow for expansion and contraction. We have designed the PDP Diff Breather Kit for those who want to do water crossings or want insurance that they won’t get water contaminants. This is like a fuel filter kit – cheap insurance because if the locker motor seizes, it could cost over in excess of $1000 in repairs.

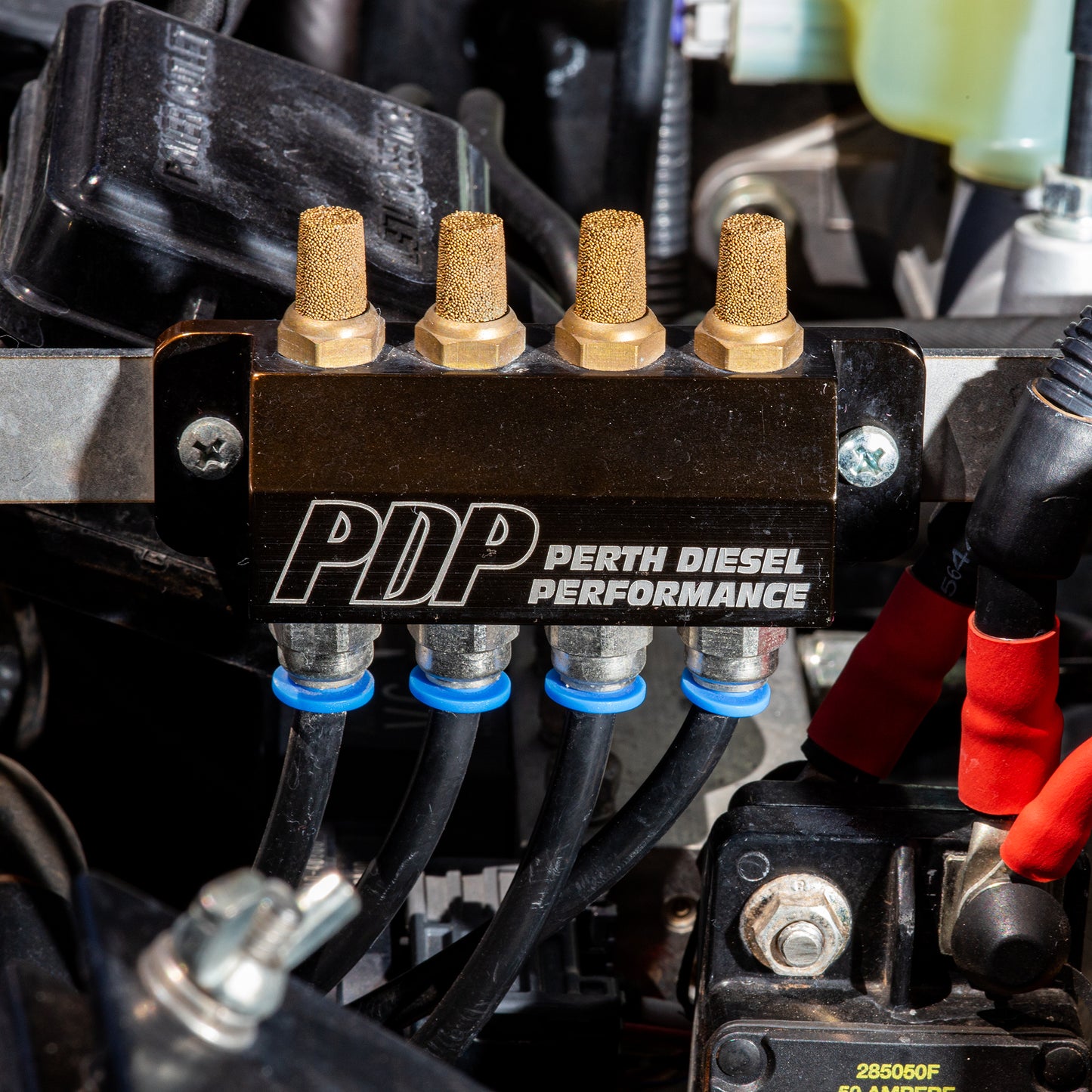

We have designed the PDP Diff Breather Kit to raise the breather location to the highest possible and serviceable position of the car. (The factory breather location is normally down low on the chassis which makes it hard to see is something if wrong before it’s too late).

  • Diff Breather Kit is custom designed for 70 series only by PDP
  • Made to fit our fuel manager kits
  • Only vehicle specific kit on the market
  • Also we breathe the diff locker motors


  • Standard height position of factory diff breathers: max wading depth is 700mm
  • PDP Diff breather height position: max wading depth on PDP is at least 1,100mm

 PDP  breath

Customer Reviews

Based on 13 reviews
Simon Bell
PDP Diff breather kit

Really fast delivery and product looks great yet to instal

Travis Rowlands


It's OK

Bought this kit a while ago and only fitted it recently.
I don't understand why you would want to bring 4 hoses into your engine bay and connect them individually into this four-way filter block (except for having another spot with enough space to laser etch your company name).
This is a messy way of going about it...
When I installed the breathers extension in my Cruiser, I've joined them along the way using T-pieces and brought up only a single hose into the engine bay, I then fabricated a little 90 degree bracket and installed a single filter on it and mounted it together with my air compressor relay on lowering bracket (due to bonnet struts) using one of the original threaded holes in the side of the engine bay.
This makes a much neater installation than what this kit proposes as you end up with only a single hose running along your chassis and up into the engine bay.
There's no need to allow for massive air flow, these are only breathers which are there to allow for air to travel due to expansion and contraction in the drivetrain.
