PDP Diff Breather Kit | 70 Series
Couldn't load pickup availability
Product Dimensions
Product Dimensions
Box Dimensions
Box Dimensions

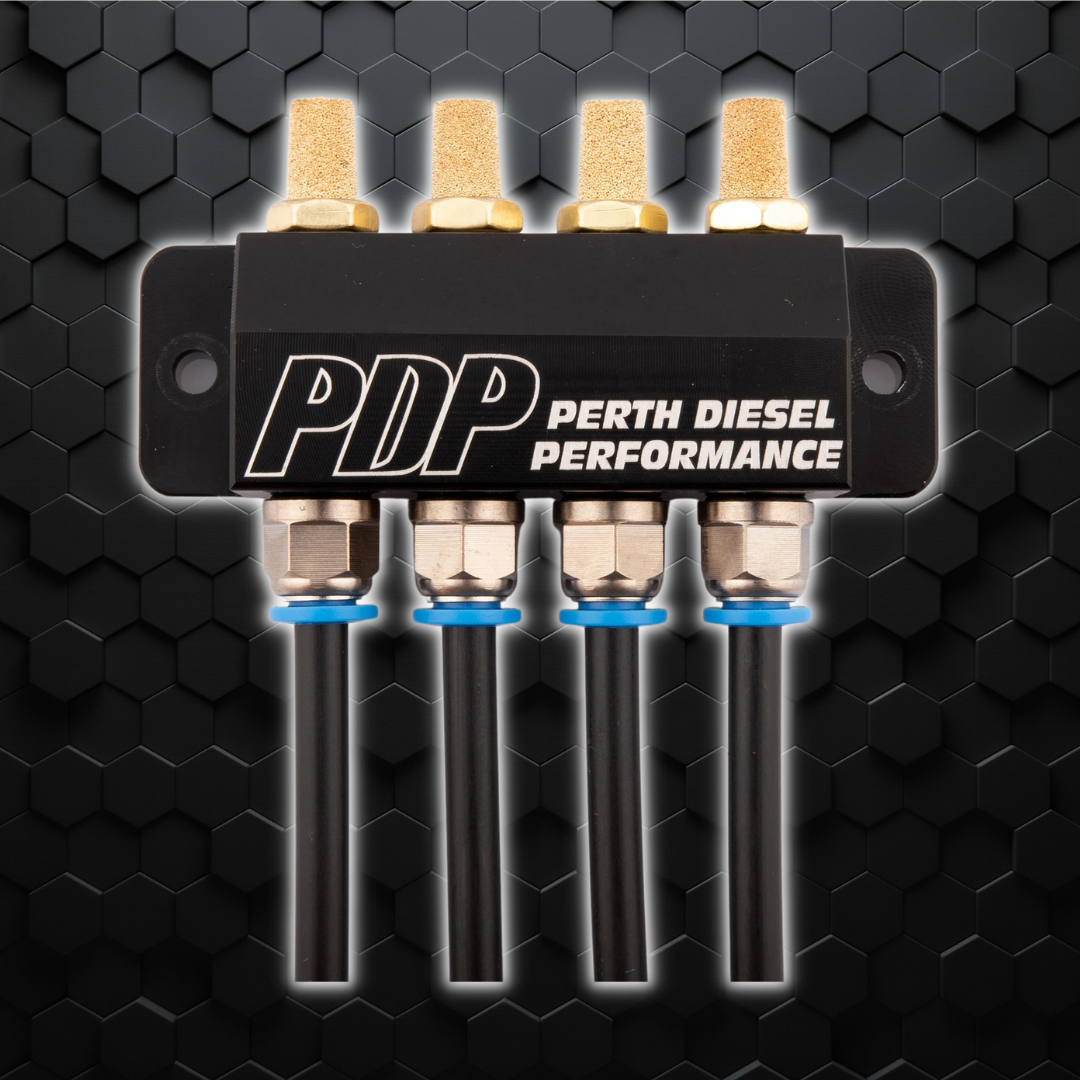

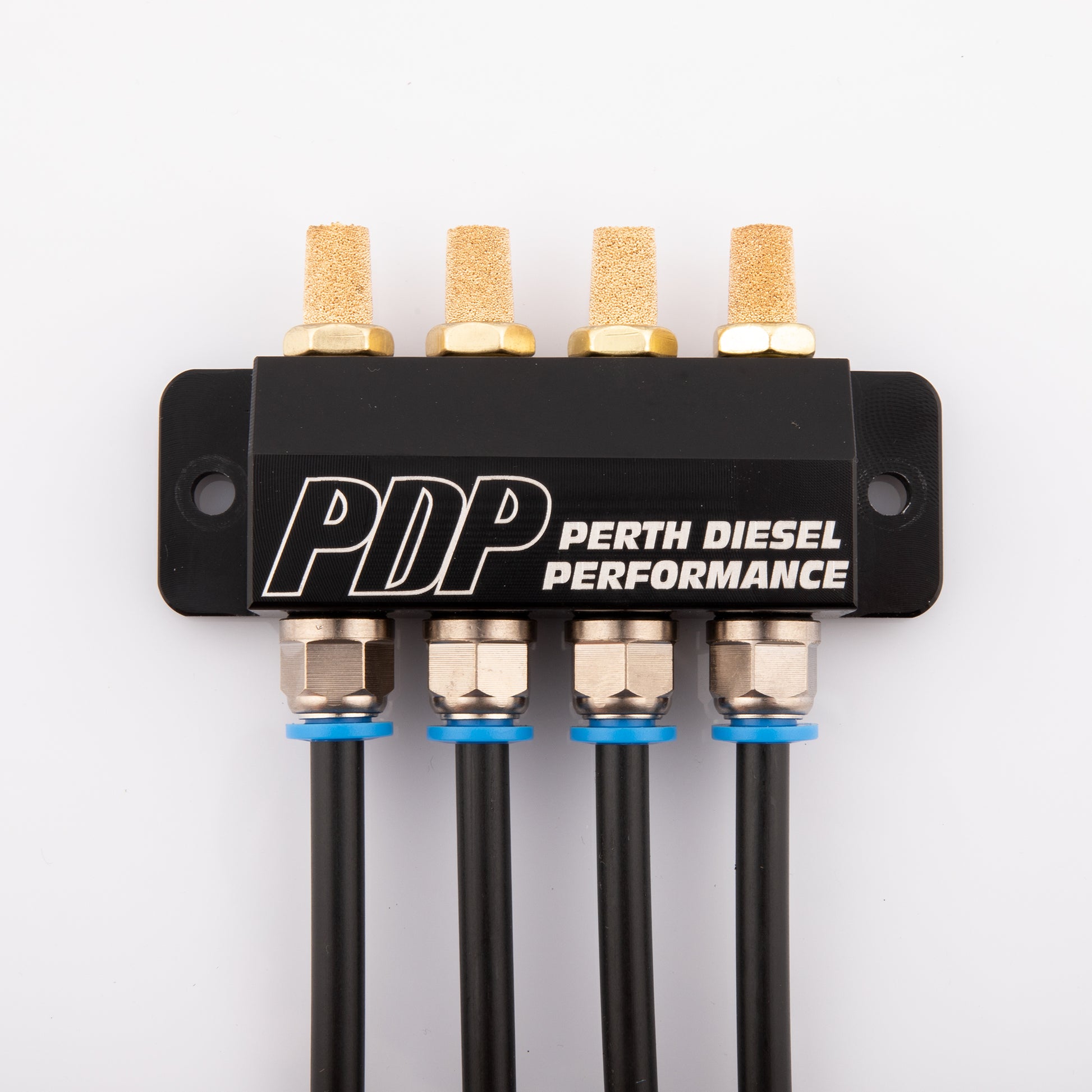

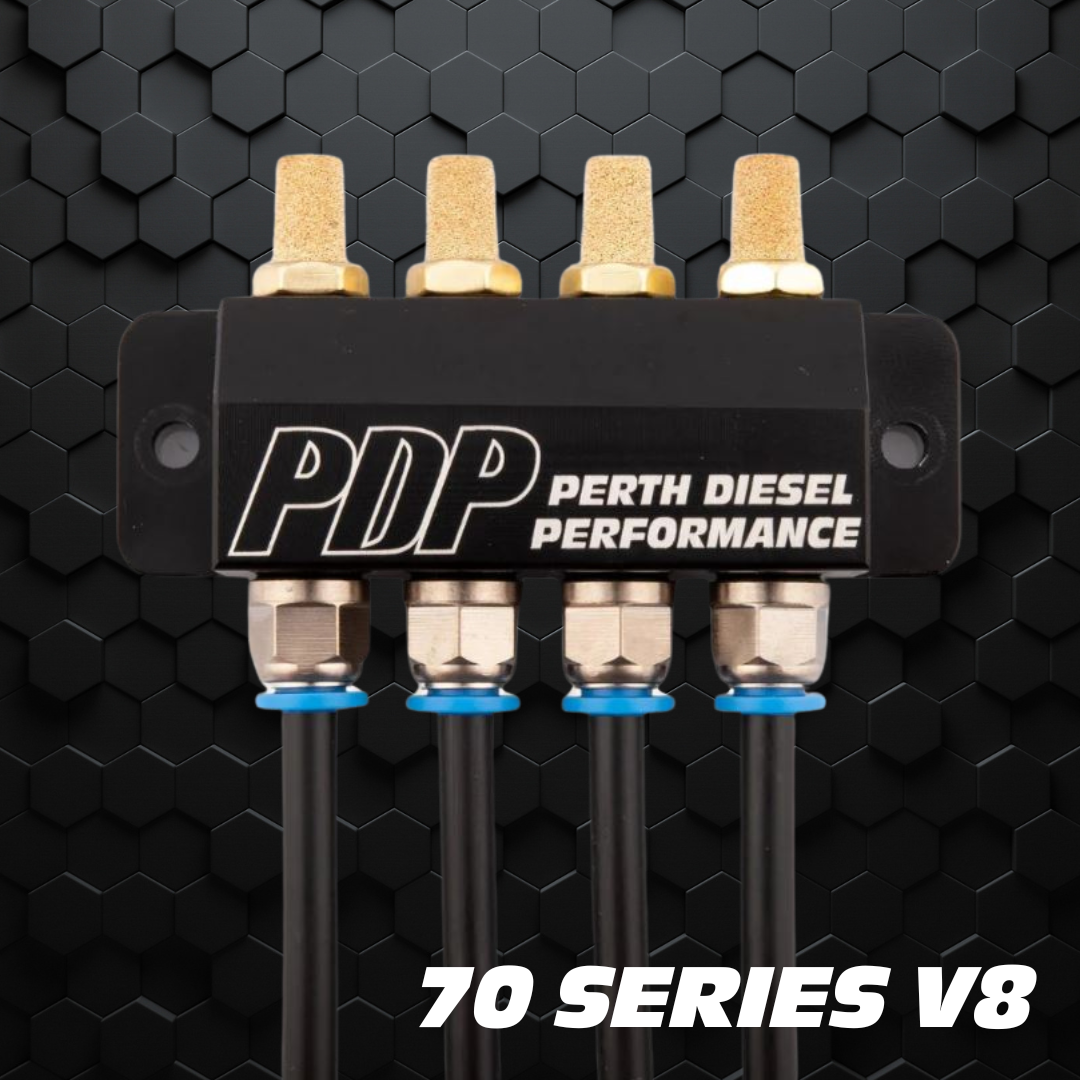

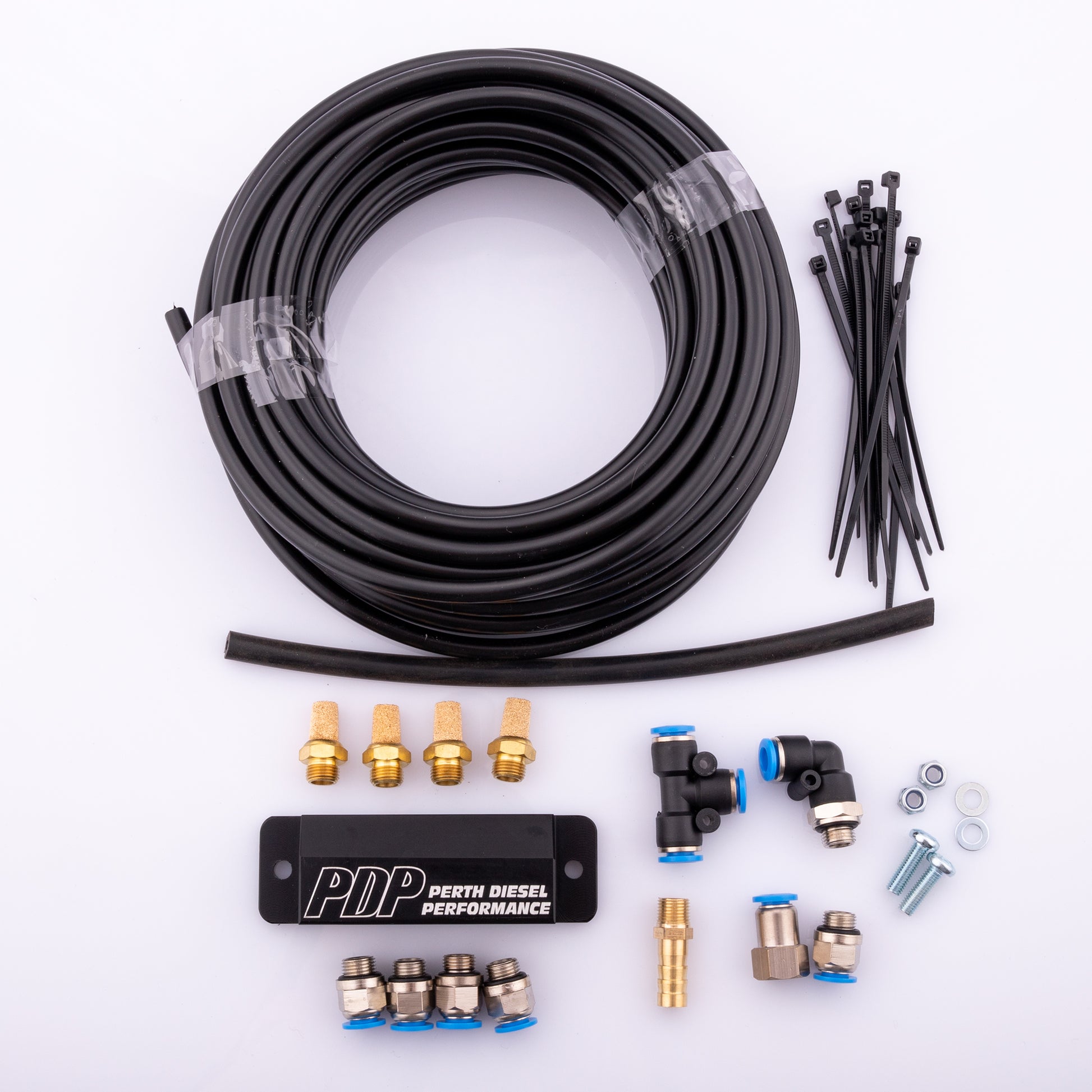

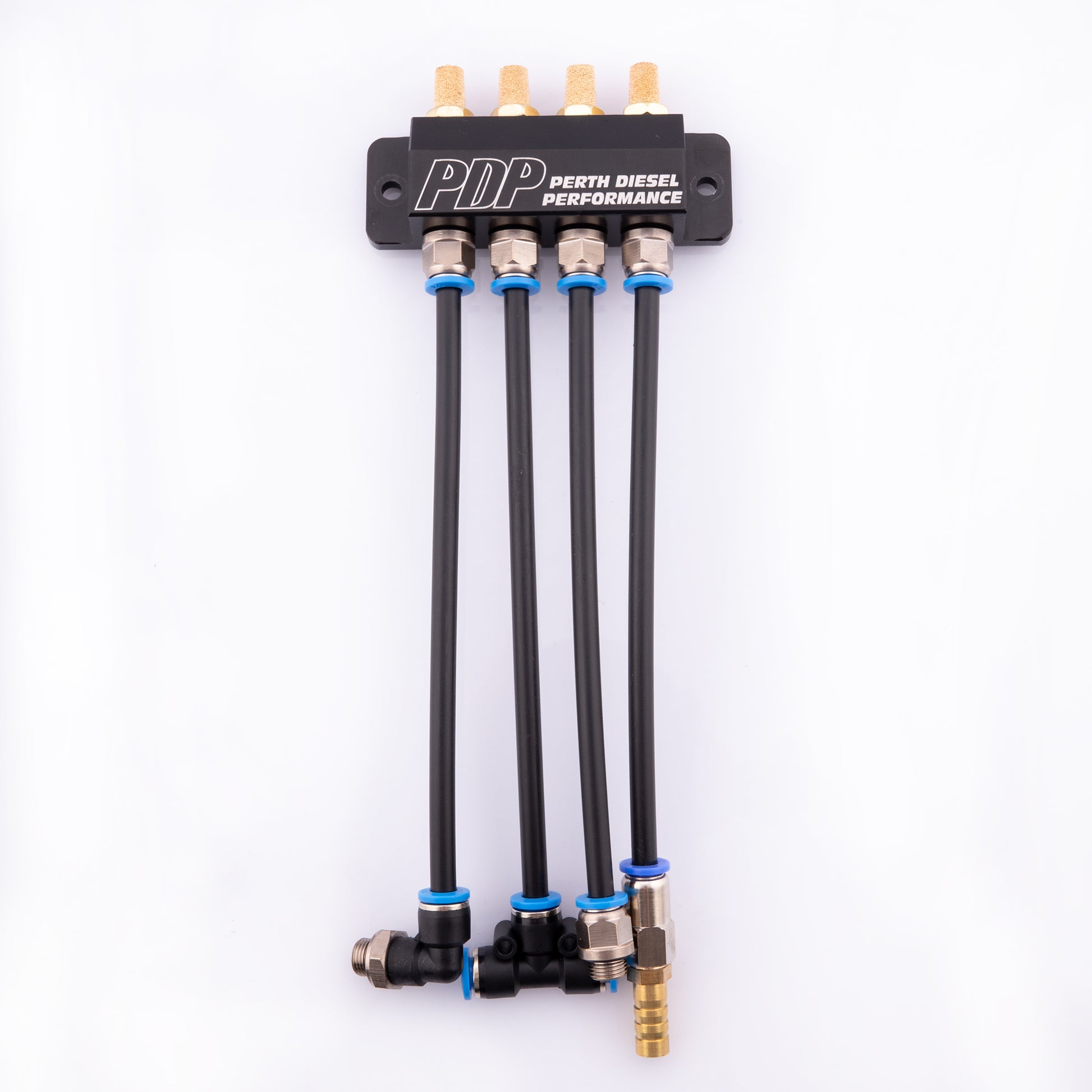

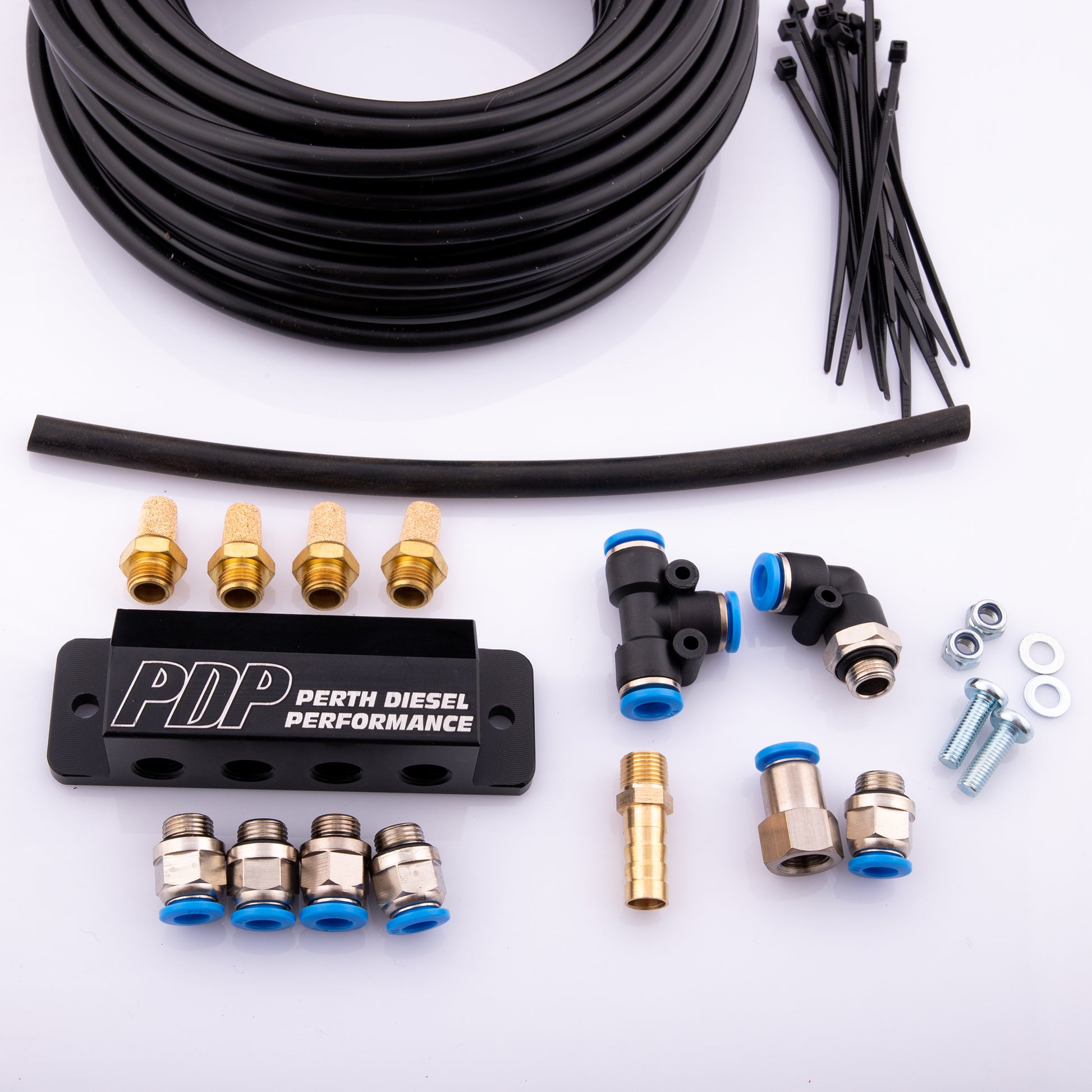

Diff Breather Kit 70 Series Landcruiser
Suits front & rear diff, front and rear locker motor (GXL) and also a breather for the gearbox/transfer case.
The gearbox, diffs and locker motors have breathers to allow for expansion and contraction. We have designed the PDP Diff Breather Kit for those who want to do water crossings or want insurance that they won’t get water contaminants. This is like a fuel filter kit – cheap insurance because if the locker motor seizes, it could cost over in excess of $1000 in repairs.

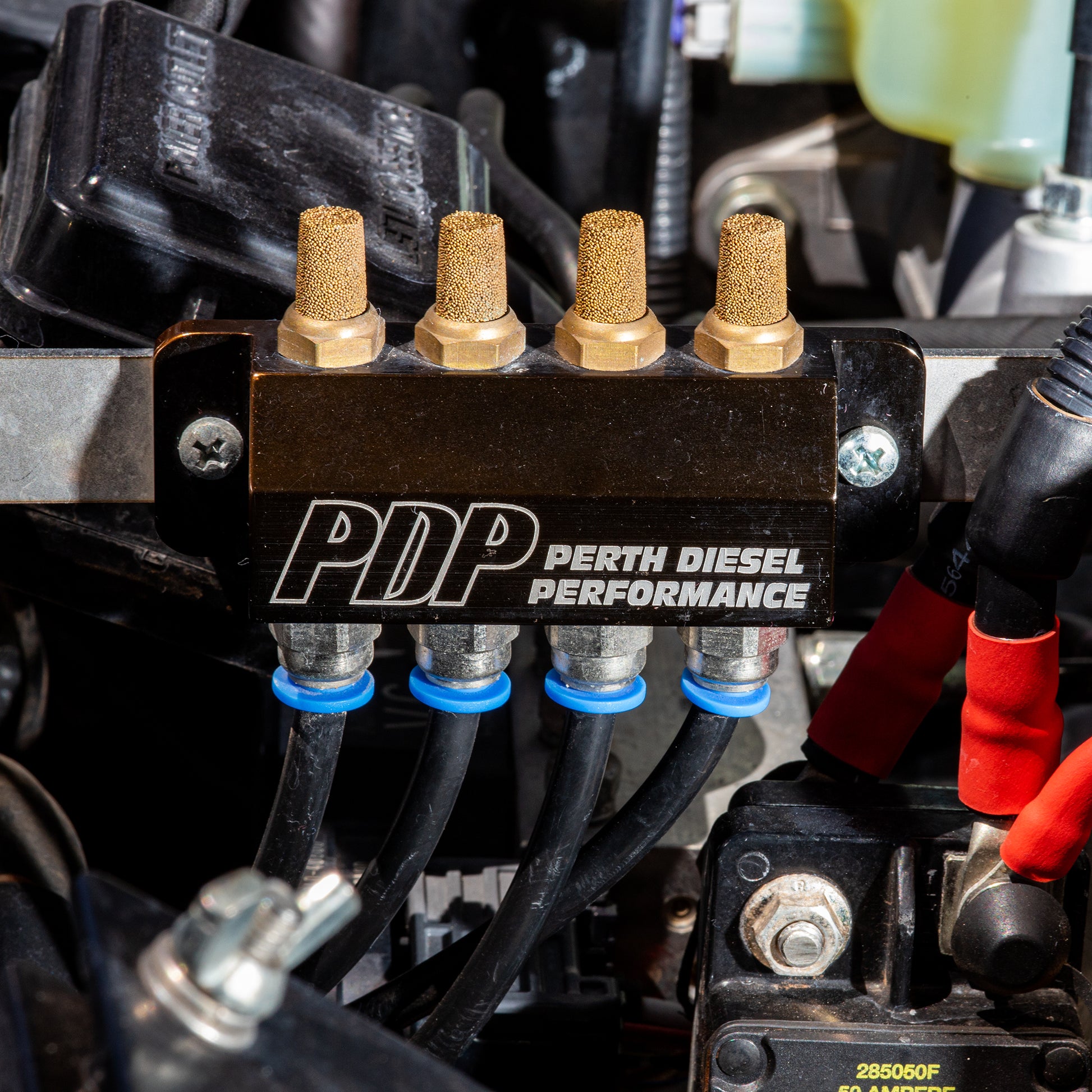

We have designed the PDP Diff Breather Kit to raise the breather location to the highest possible and serviceable position of the car. (The factory breather location is normally down low on the chassis which makes it hard to see is something if wrong before it’s too late).
- Diff Breather Kit is custom designed for 70 series only by PDP
- Made to fit our fuel manager kits
- Only vehicle specific kit on the market
- Also we breathe the diff locker motors
COMPARE THE PDP DIFF BREATHER KIT WITH OTHERS ON THE MARKET…
- Standard height position of factory diff breathers: max wading depth is 700mm
- PDP Diff breather height position: max wading depth on PDP is at least 1,100mm
PDP breath
Customer Reviews
UK DELIVERY WAS STRESS FREE AND EASY
Bought this kit a while ago and only fitted it recently.
I don't understand why you would want to bring 4 hoses into your engine bay and connect them individually into this four-way filter block (except for having another spot with enough space to laser etch your company name).
This is a messy way of going about it...
When I installed the breathers extension in my Cruiser, I've joined them along the way using T-pieces and brought up only a single hose into the engine bay, I then fabricated a little 90 degree bracket and installed a single filter on it and mounted it together with my air compressor relay on lowering bracket (due to bonnet struts) using one of the original threaded holes in the side of the engine bay.
This makes a much neater installation than what this kit proposes as you end up with only a single hose running along your chassis and up into the engine bay.
There's no need to allow for massive air flow, these are only breathers which are there to allow for air to travel due to expansion and contraction in the drivetrain.
thanks guy's for sending the stuff to torqit so they could collect all the other things and send it to Germany. The wonderful diff breather kit will be built in a troopy. The installation instruction is well done with pictures and all the needed information. Everything is worth the money.
-
