Switch-Pros SP-9100 | Switch Panel Power System

Regular price $995.00 AUD
Regular price Sale price $995.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Product Dimensions

Box Dimensions

  • About Perth Diesel Performance - Online Store

  • Shipping Info

    Orders before 1PM will be shipped same day.

    Metro shipping times are from 2 days and regional shipping times are from 3. Please see our shipping page for more details and info on bulk orders

  • Warranty & Returns

    30 day refunds are available for all undamaged products.

    Feel free to contact us if you have any questions. We're based in WA and are here to help

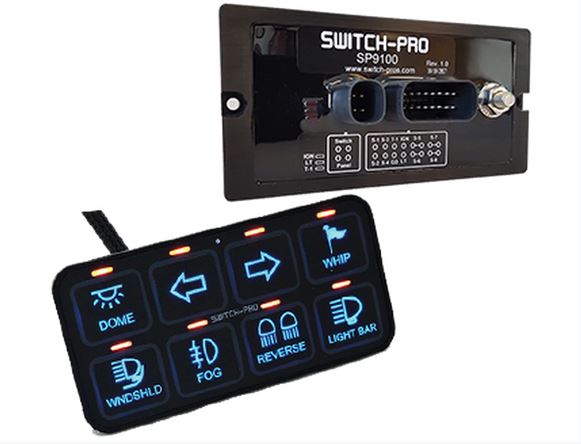

Switch-Pros SP-9100 | Switch Panel Power System

The Switch-Pros SP-9100 is an all in one switching system for your vehicle. The system includes solid state relays, fuses and switching for up to 8 accessories.

  • 100 User-selectable switch legends
  • Eight user-programmable switches
  • Four 35A circuits and four 20A circuits
  • Waterproof, Solid State 125A Power Module
  • RGB Backlighting provides unlimited color options, using Color Picker on App
  • Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
  • Switches can be programmed for:
  • On/Off or Momentary
  • Ignition or Battery Input
  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
  • Memory Function
  • Master Mode, with ability to turn multiple outputs On AND Off with one touch
  • Automatic Power-Up upon vehicle start up
  • Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
  • Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
  • Sleep Mode for minimal power consumption
  • Colour Coded circuit wires
  • LED Input Status Indicators for easy troubleshooting
  • Time Delay Off function available for all circuits
  • Splash proof switch panel with Polycarbonate overlay faceplate
  • Program and control the system from switch panel pad or smart phone
  • Bluetooth interface with FREE Apple or Android App
  • Battery Voltage Readout on App screen
  • No Fuses or Bulky Relay box
  • Built-In Bluetooth Module

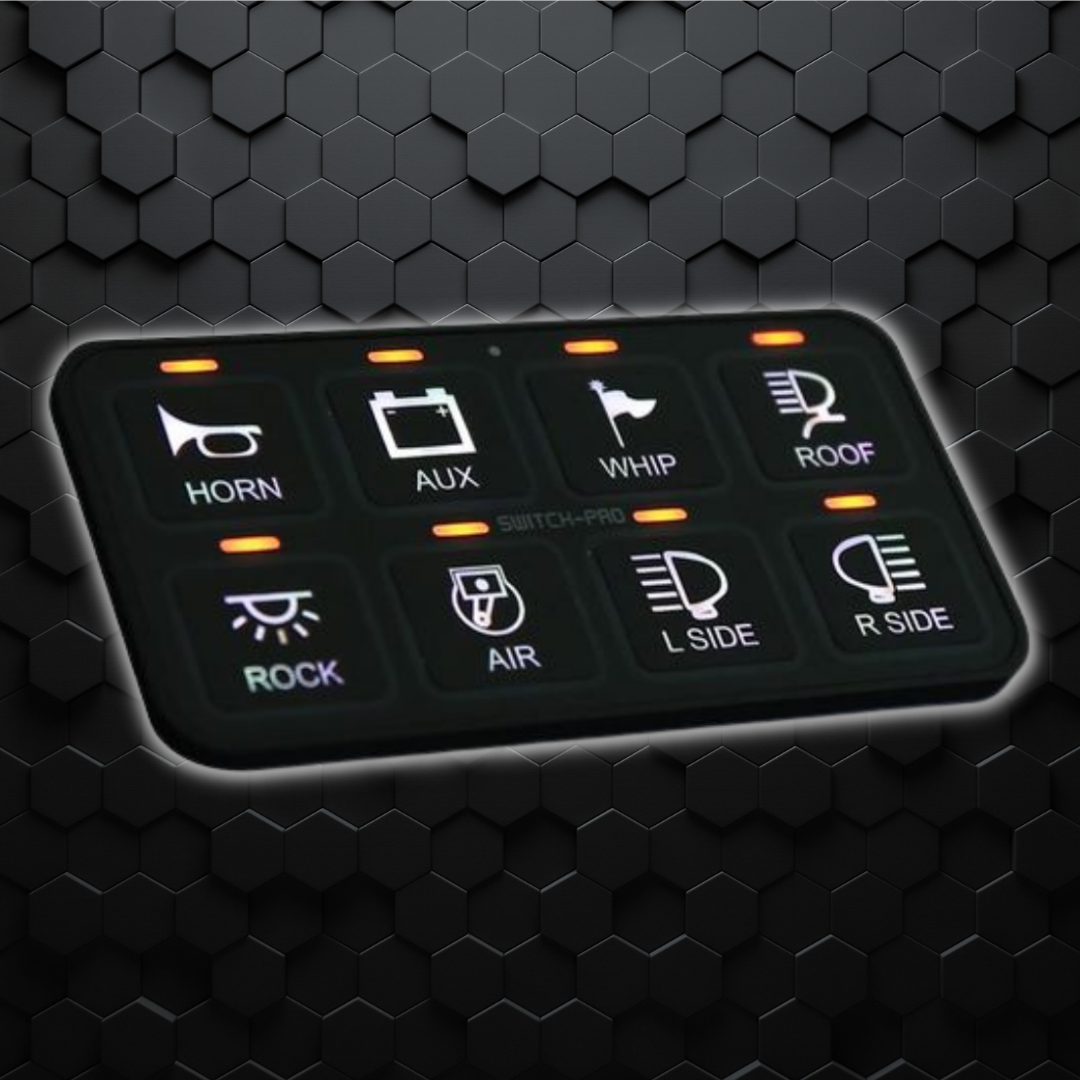

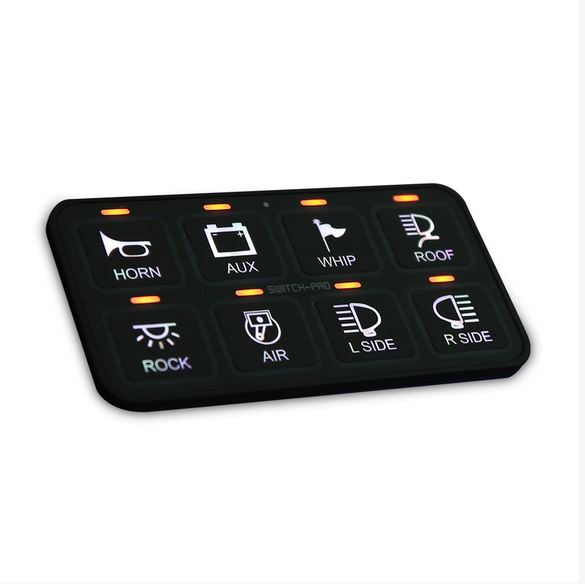

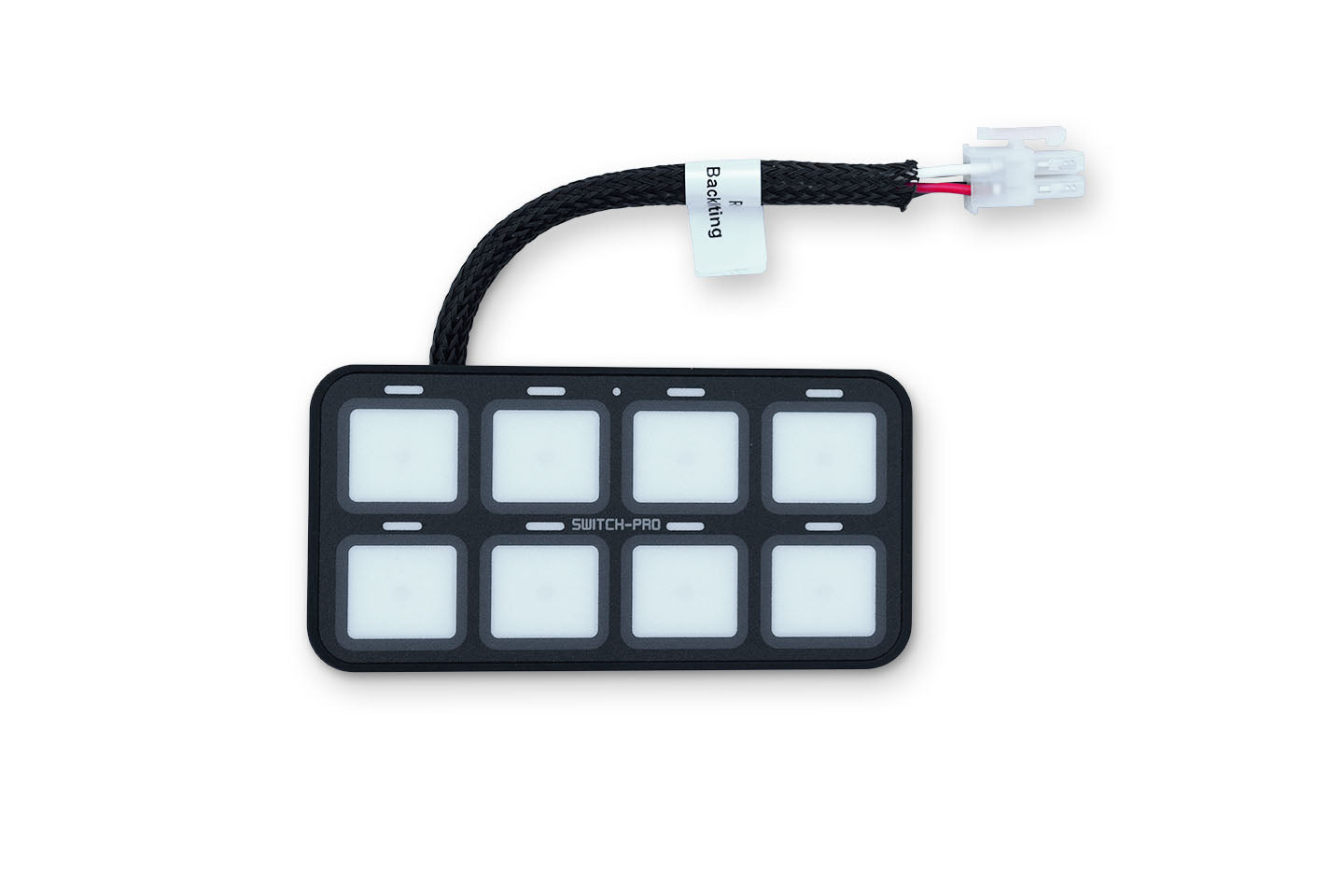

Switch Panel Specs:

  • RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
  • Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
  • Orange LED switch indicators

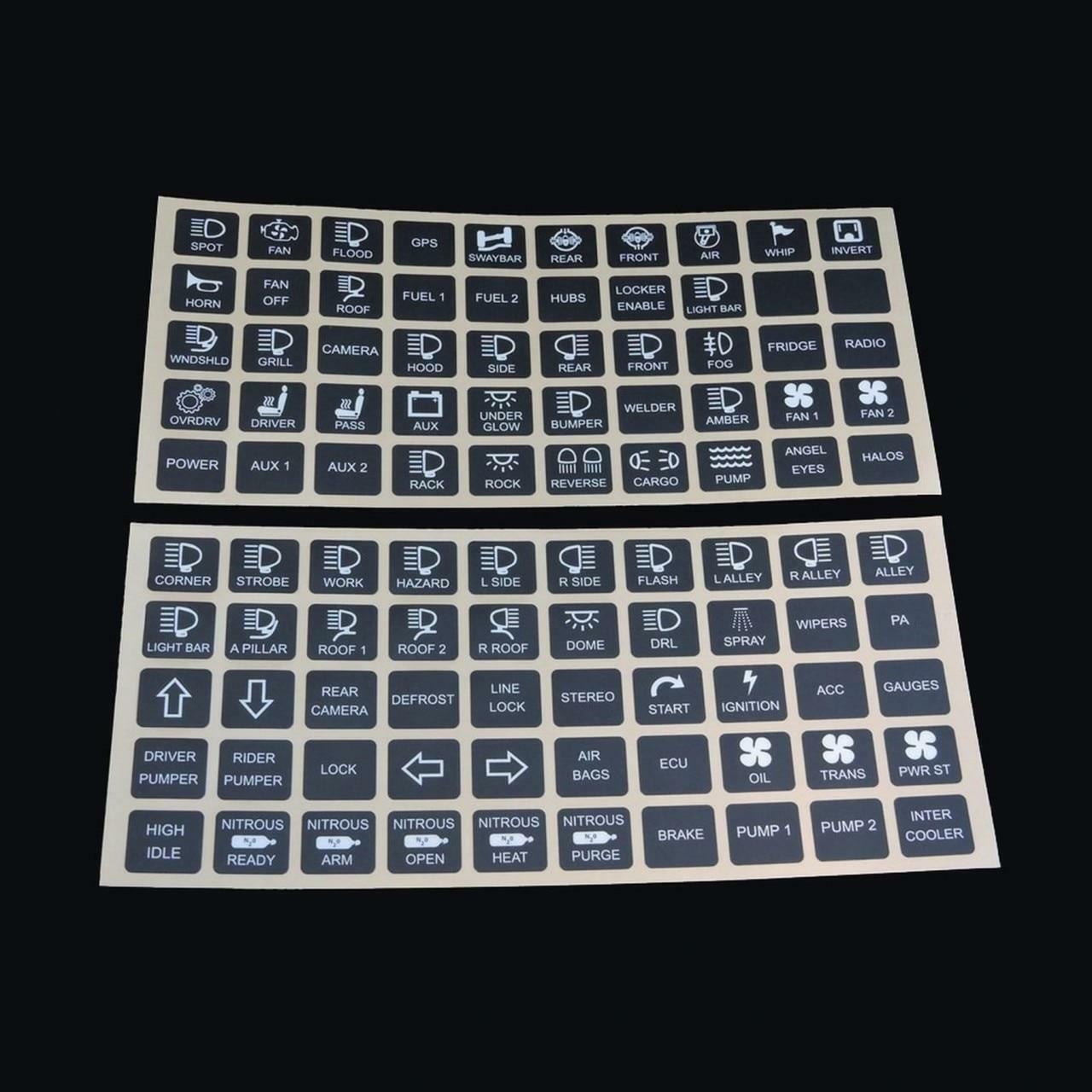

  • 100 User Selectable Legends

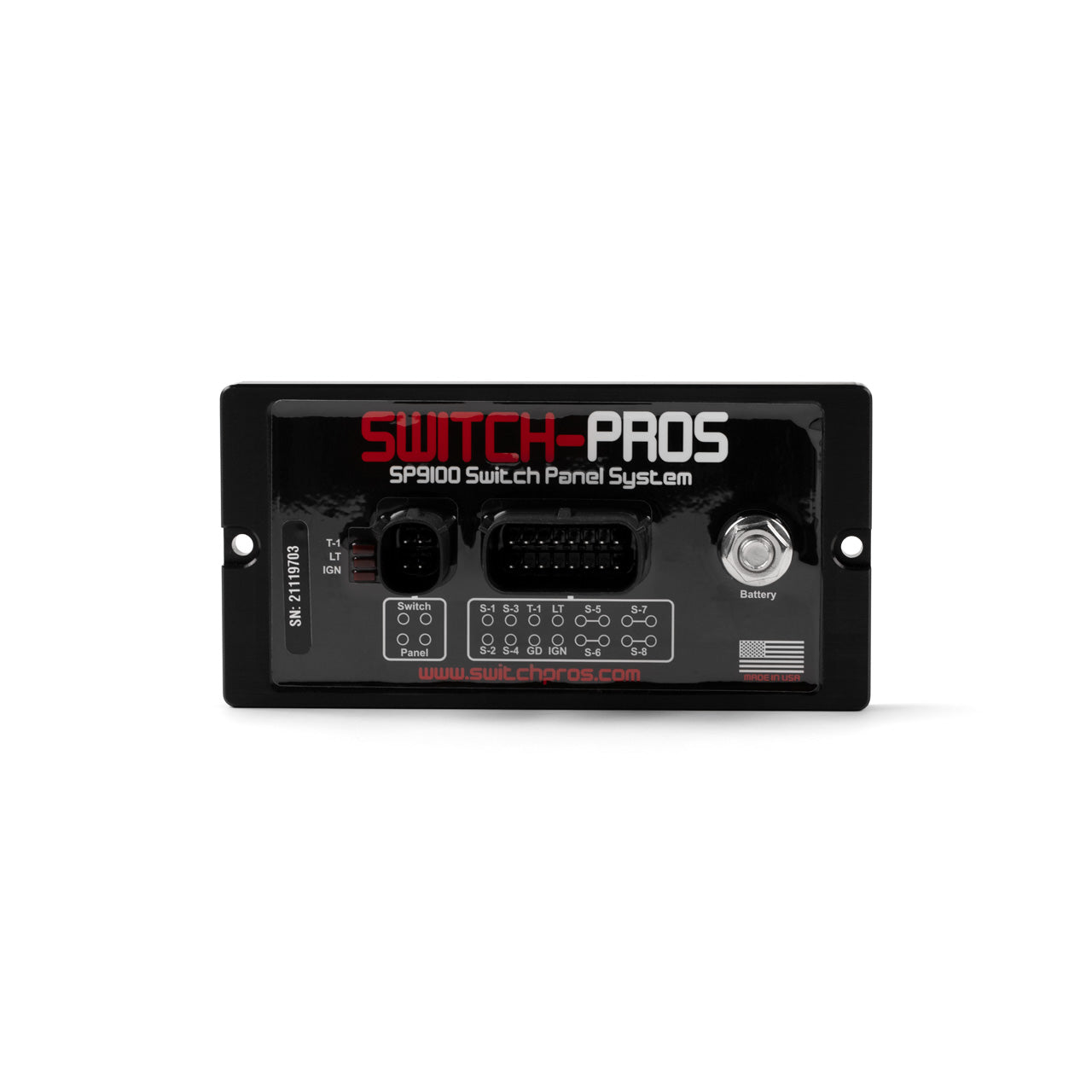

Power Module Specs:

  • 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
  • 125A maximum rating
  • Waterproof and Solid State
  • 6”L x 3”W x .5”H (excluding connectors)
  • LED Input Status Indicators for easy troubleshooting
  • Underhood rated 125° to -40°C

Kit Also Includes:

  • 11’ of Communication Cable between Switch Panel and Power Module
  • Color Coded Output wires
  • Wire harness with Waterproof, sealed automotive grade connectors
  • Power Cable with 125A inline fuse

Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorise previous settings.  There is also a programming function to adjust the brightness of back lighting and indicator LEDs.
