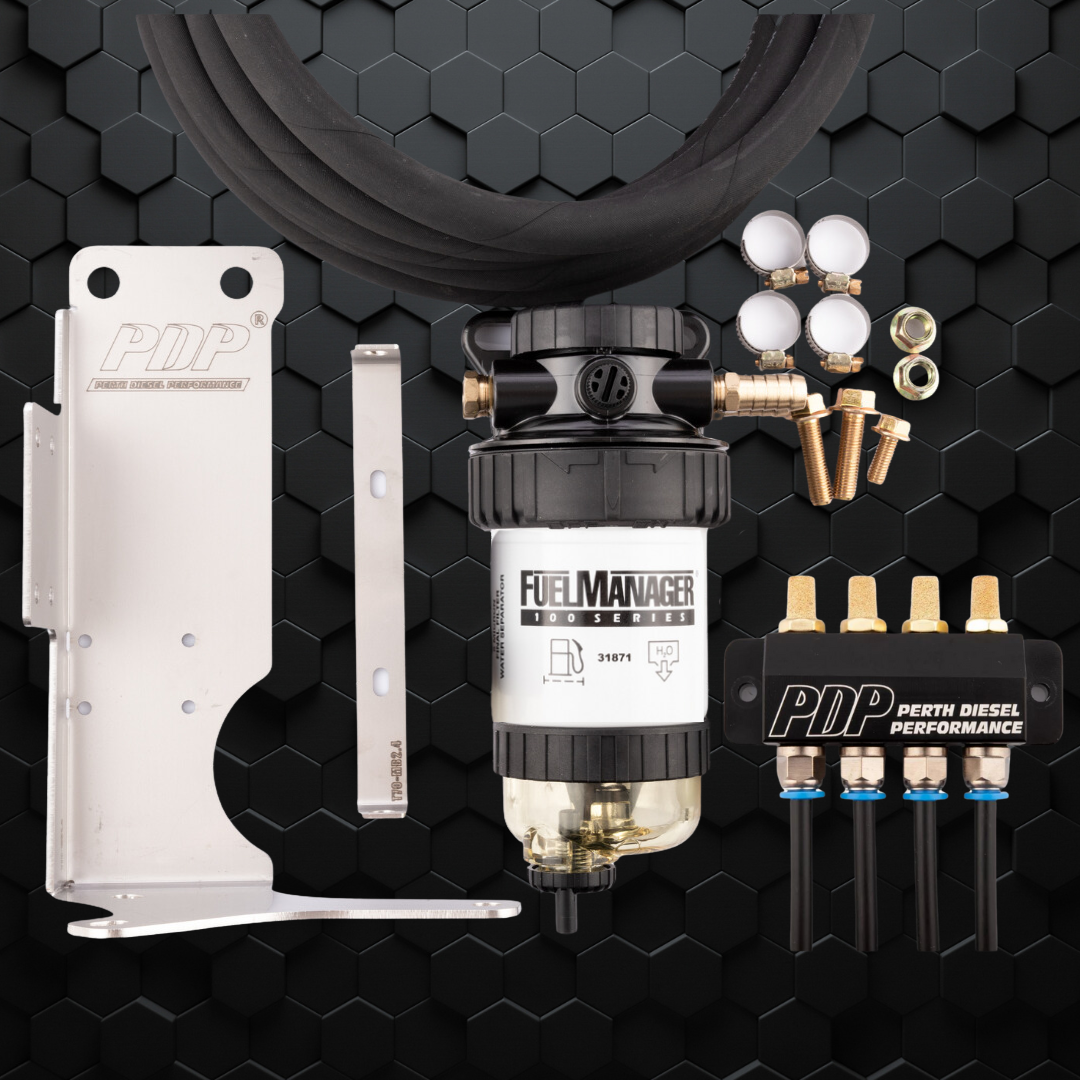

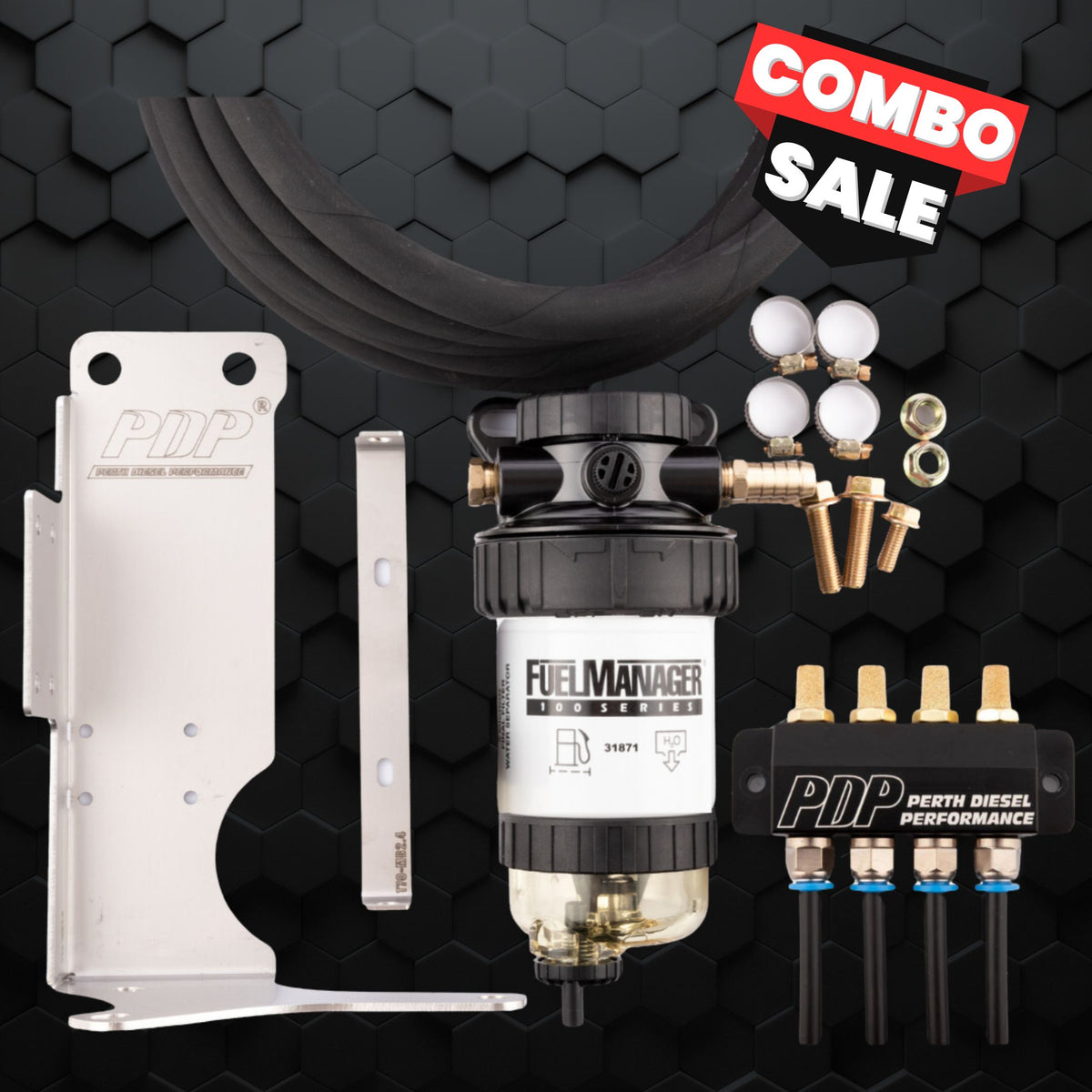

70 Series Combo | PDP Pre-Fuel Filtration 5 micron & Diff Breather kit | V8 engine
Couldn't load pickup availability
Key Features
Key Features
Product Dimensions
Product Dimensions
Box Dimensions
Box Dimensions
PERTH DIESEL PERFORMANCE

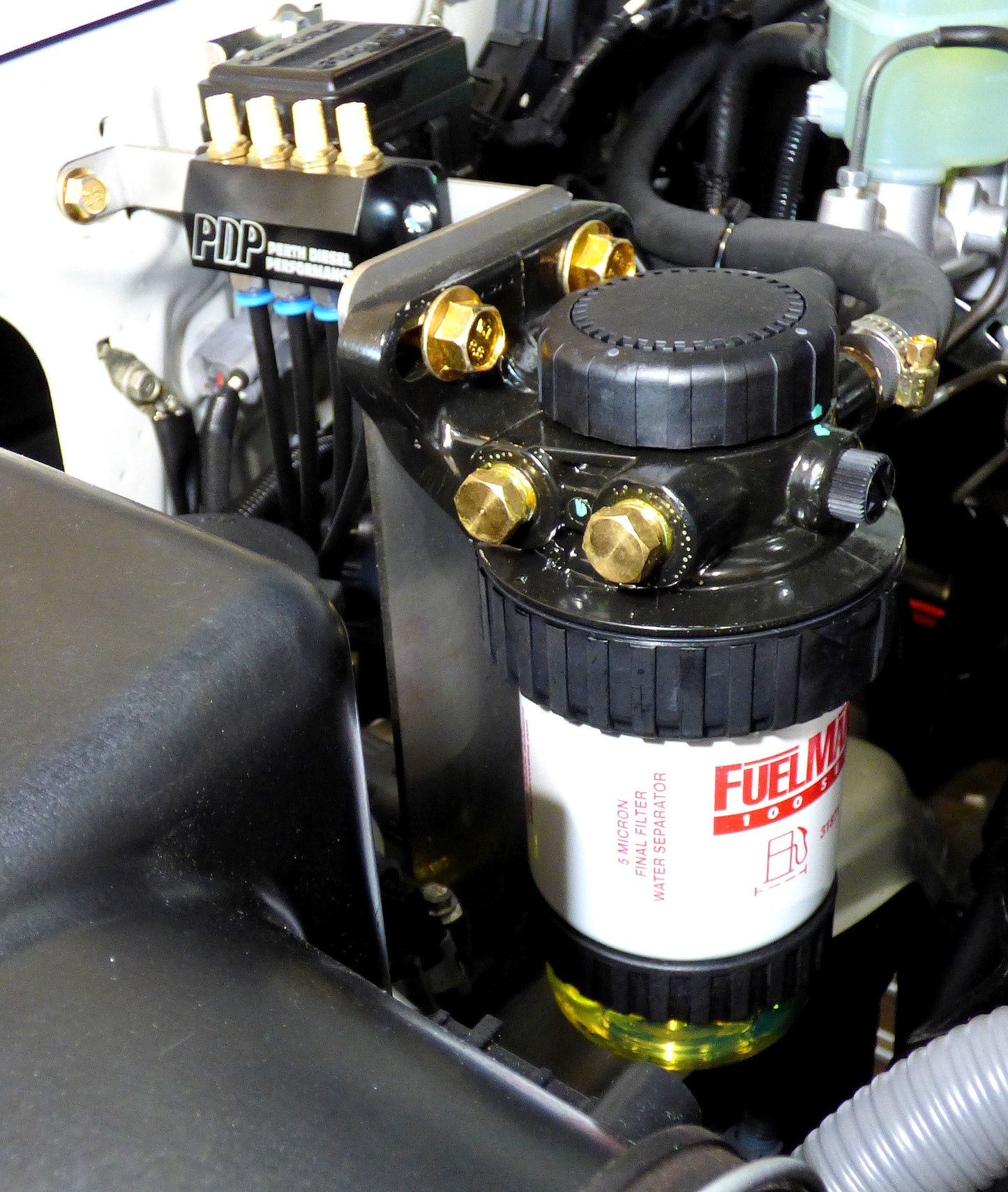

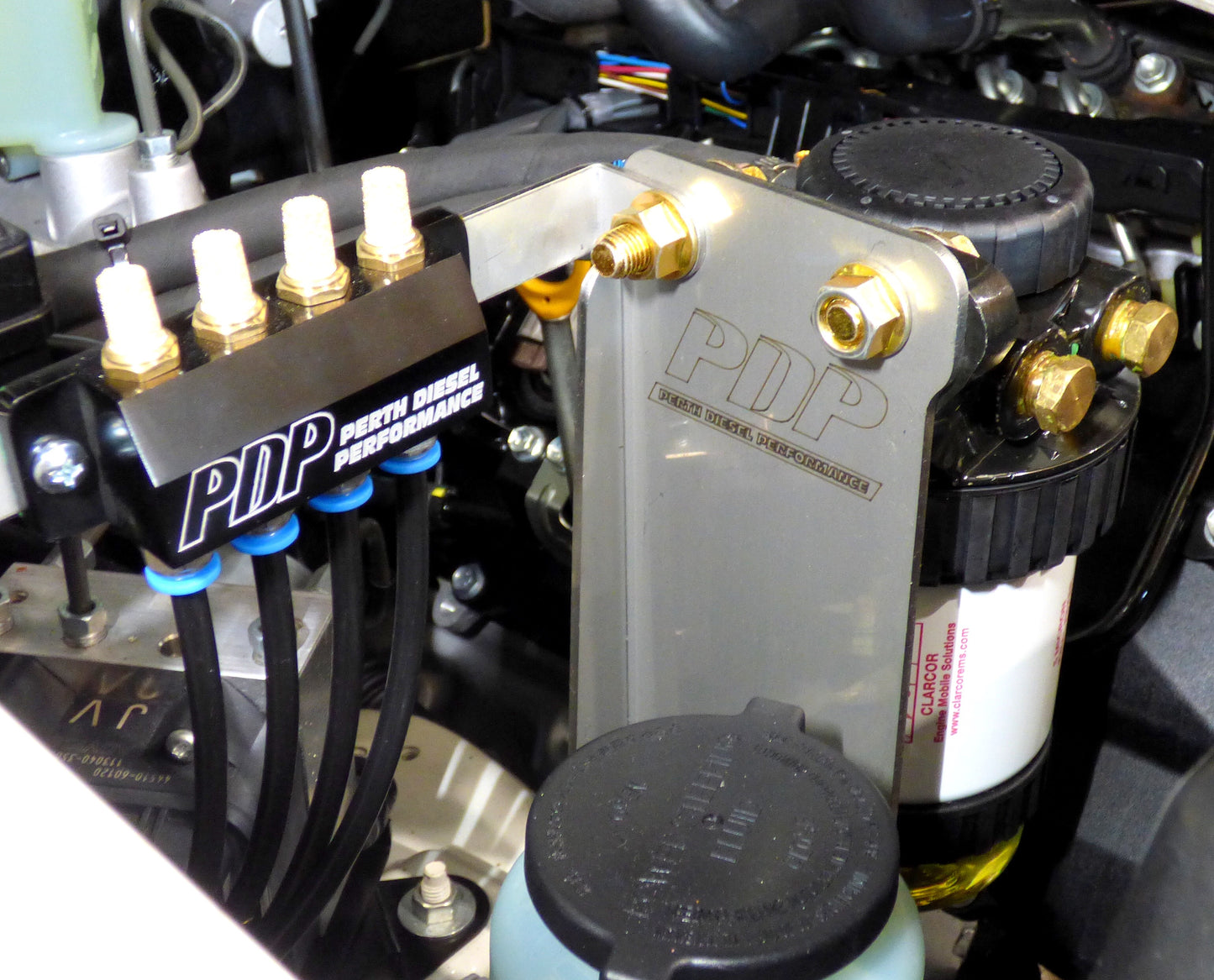

Our fuel manager kit is also designed to carry 2 x waterproof lever lock circuit breakers to allow protected power supply to rear of vehicle. This is an added bonus only available at PDP. Also holes ready for automatic, resettable circuit breakers for fitment of electric brake controllers (Redarc).
- Designed to fit to the driver’s side of the vehicle to allow for dual battery setups
- Support brackets made locally in WA from stainless steel
- Suits 07 to current MY2025 V8 Landcruiser single cab, dual cab, wagons or Troop carriers
- Use ½ inch hose size
- Dual braided hose with the extra layer for rub resistance
- EFI hose clamps for that guaranteed seal & no sucking air
- Metric bolts as Toyota are all metric
- High flow fittings
- Designed and tested by PDP
- 5 micron filter
No engine lights like other cheaper kits – some cheaper kits contain smaller hose and fittings which starve the system of fuel and cause engine lights to come on

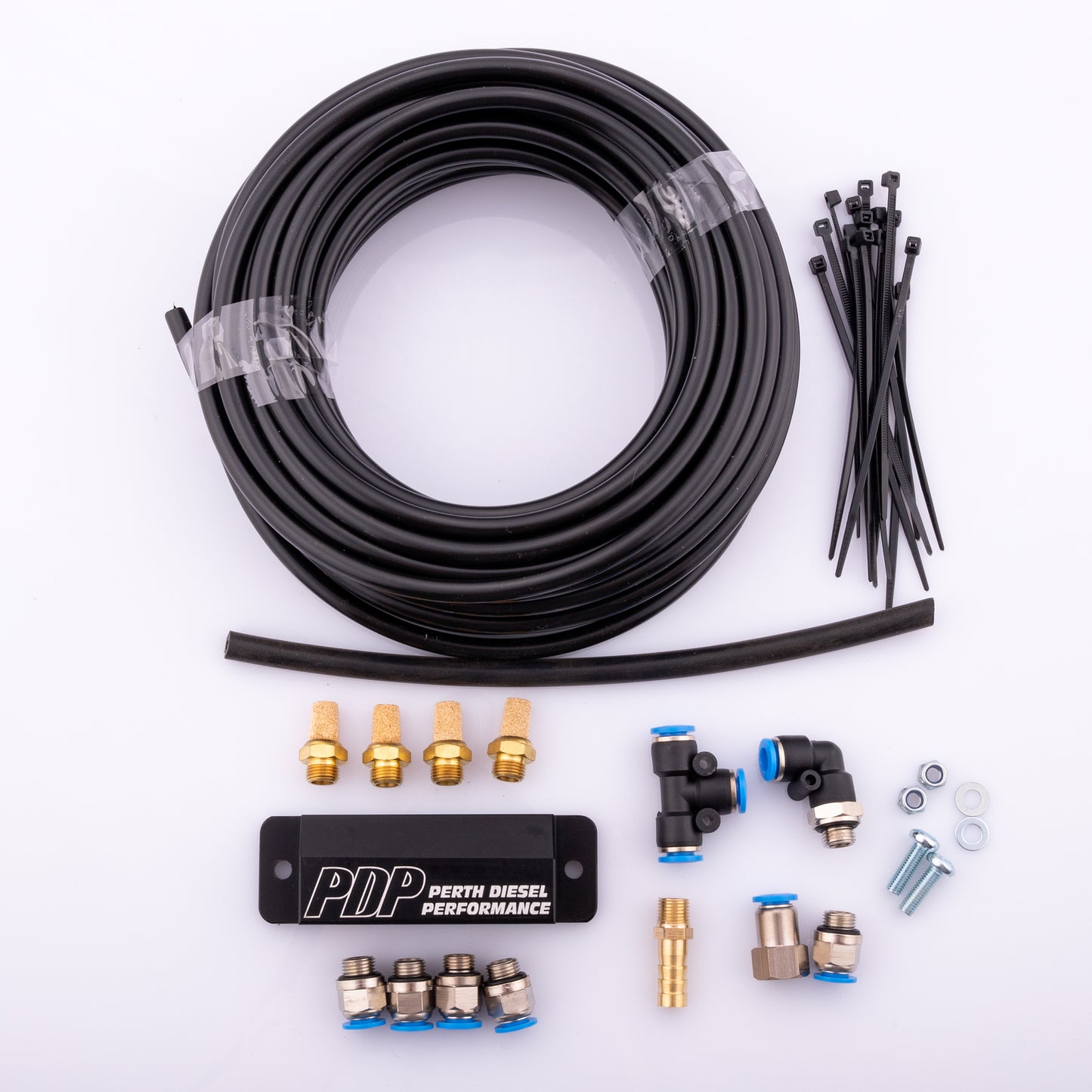

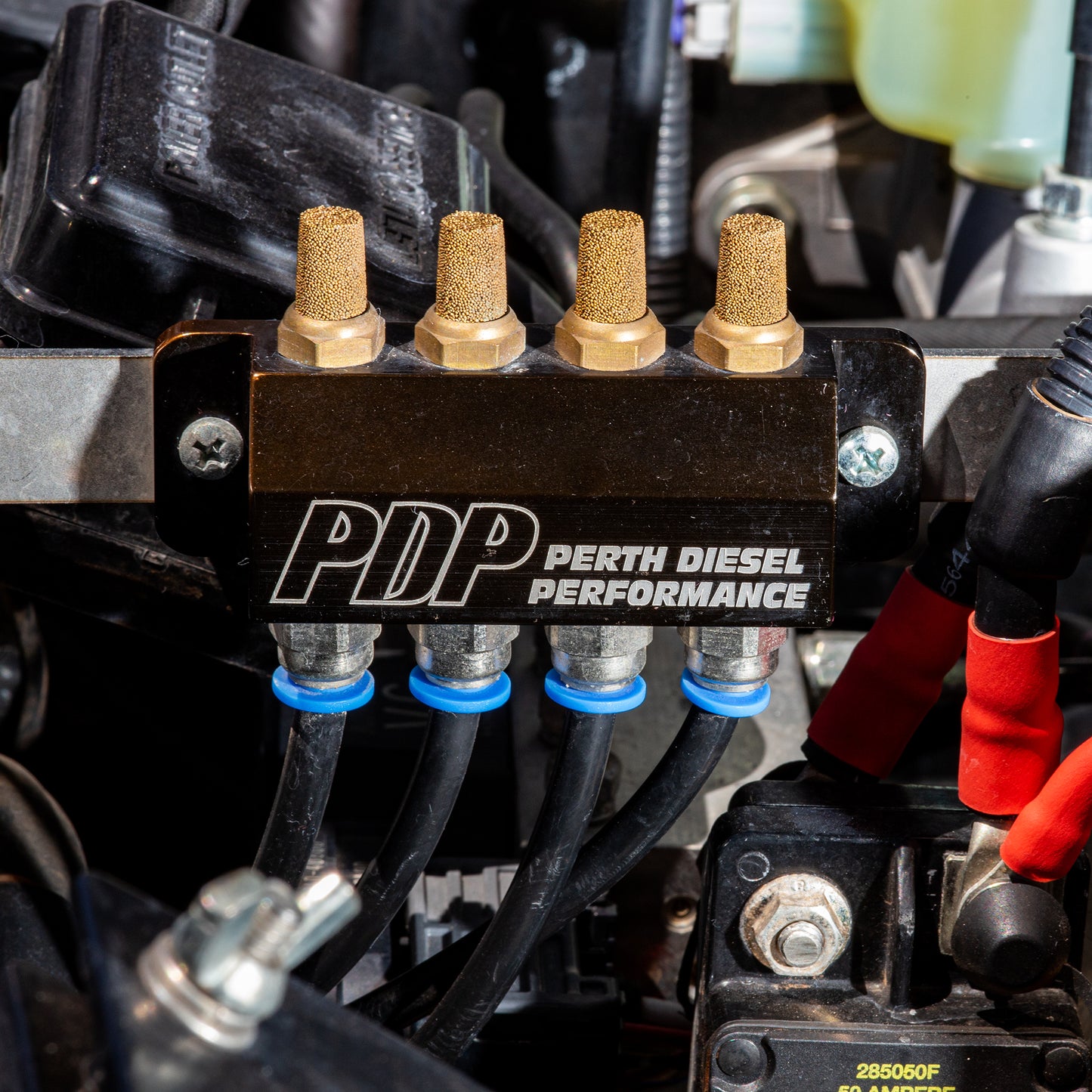

DIFF/GEARBOX BREATHER KIT
Suits front & rear diff, front and rear locker motor (GXL) and also a breather for the gearbox/transfer case.
The gearbox, diffs and locker motors have breathers to allow for expansion and contraction. We have designed this kit for those who want to do water crossings or want insurance that they won’t get water contaminants. This is like a fuel filter kit – cheap insurance because if the locker motor seizes, it could cost over in excess of $1000 in repairs.
We have designed this to raise the breather location to the highest possible and serviceable position of the car. (The factory breather location is normally down low on the chassis which makes it hard to see is something if wrong before it’s too late)
- Kit is custom designed for 70 series only by PDP
- Made to fit our fuel manager kits
- Only vehicle specific kit on the market
- Also we breathe the diff locker motors
COMPARE THE PDP WITH OTHERS ON THE MARKET…
Standard height position of factory diff breathers: max wading depth is 700mm
PDP Diff breather height position: max wading depth on PDP is at least 1,100mm
*** Please Note, video below mentions old fuel head flow configuration, this has been updated since and our install instructions advise correct configuration.
UK DELIVERY WAS STRESS FREE AND EASY
Bought this kit a while ago and only fitted it recently.
I don't understand why you would want to bring 4 hoses into your engine bay and connect them individually into this four-way filter block (except for having another spot with enough space to laser etch your company name).
This is a messy way of going about it...

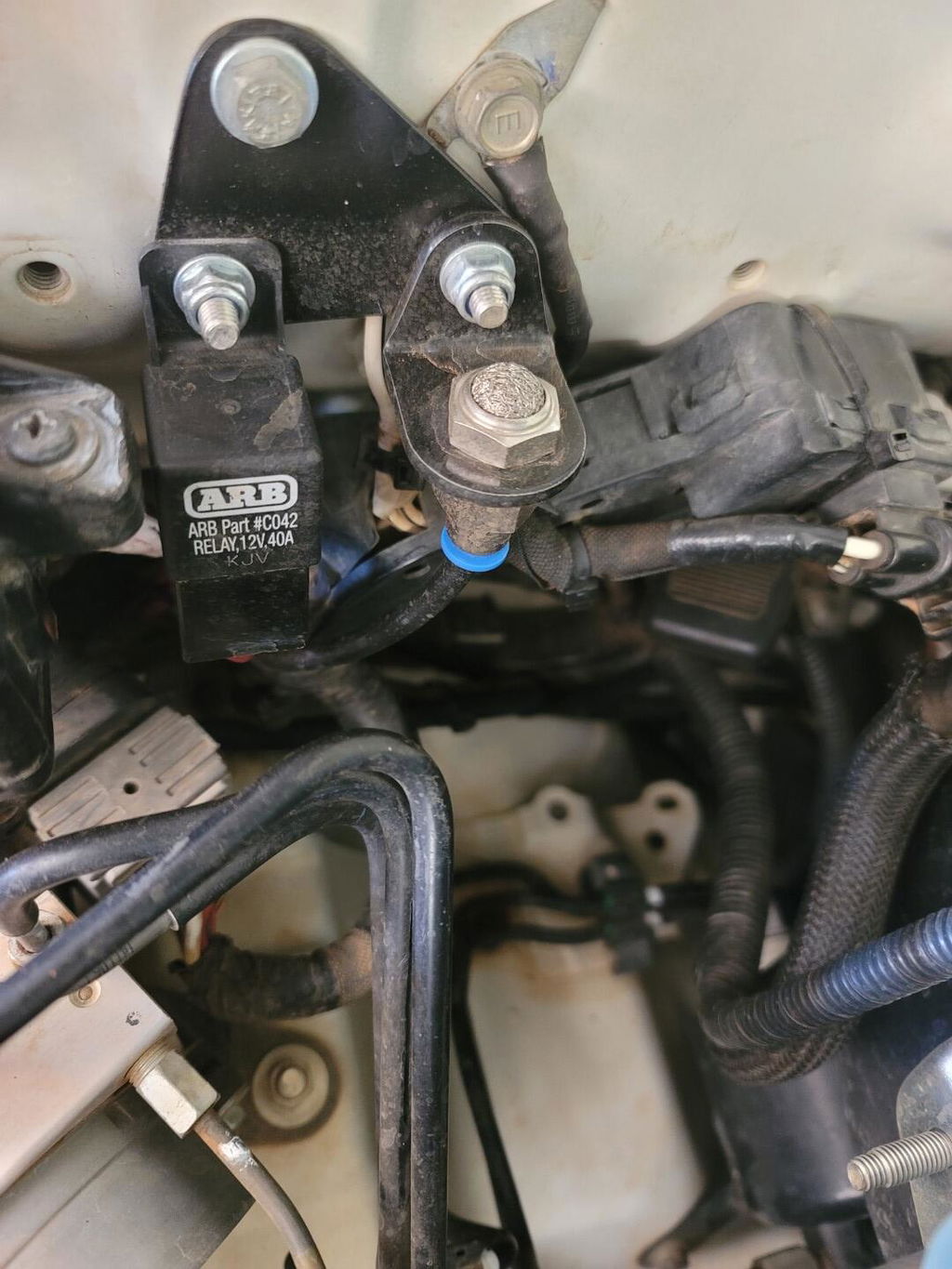

When I installed the breathers extension in my Cruiser, I've joined them along the way using T-pieces and brought up only a single hose into the engine bay, I then fabricated a little 90 degree bracket and installed a single filter on it and mounted it together with my air compressor relay on lowering bracket (due to bonnet struts) using one of the original threaded holes in the side of the engine bay.
This makes a much neater installation than what this kit proposes as you end up with only a single hose running along your chassis and up into the engine bay.
There's no need to allow for massive air flow, these are only breathers which are there to allow for air to travel due to expansion and contraction in the drivetrain.
I got all the diy kits, hardware is good quality and easy to install
70 series | PDP Pre-Fuel Filtration Kit 5 micron | VDJ | V8 engine
Good
Top quality as always.
Easy instructions.
5 star
70 series | PDP Pre-Fuel Filtration Kit 5 micron | VDJ | V8 engine
70 series | PDP Pre-Fuel Filtration Kit 5 micron | VDJ | V8 engine
Good product
A little slow to arrive but not too bad
Have the breather in my VDJ79 and after my partner got her self a VDJ79 I ordered the breather at PDP and removed the one that was in her car as I wanted the best quality gear in her car as well as in my one.
PPD answered all my questions very quickly and Travis rang me to clarify what I wanted to do with diff breathers. Delivery was awesome. Will be hopefully no doubt dealing with these guys more as I build my 70 series of next while. They know their stuff 👍👍👍👍🤓
Great kit
Great fitting product that didn't require any changes. It just fits as it was intended to do. Of all the mods I've done to date this was one of the easier jobs. My only request would be for sharp edges of the plasma cut stainless to be deburred before sending the items out. Not a big issue as I took to the edges with a rotary tool and flap wheel before installation. Prior to doing that the edges are razor sharp as I discovered with the dual battery install.
Very good product, and easy to install!!
Great service
Easy to install. Paperwork easy to follow, although the PDP across the images made it difficult to see some details.
Looks neat and professional.
Thanks
Very good product. Easy to install with supplied instructions, was delivered to Katherine NT within 3 days
PDP Diesel Fuel Filtration Kit | V8 70 Series | Suits 07 - Current Models
Very well made and package . Perhaps not the best filter but probably a package deal done with Western Filters .
Great to deal with, very helpful
Great product and easy install
Great service & knowledge
Thankyou
PDP Diff Breather Kit | 70 Series
Great service
First time I have dealt with pdp and will be a return customer order was fulfilled promptly and correctly awesome job
Great product and easy install
Easy website to use and great service and fax deliver
Great parts but limited instructions. Perhaps some advice on priming the system may help others
Fast shipping , product fit as described
Efficient as always 👌🏻
Thanks for giving advice and providing filter with larger 30 micron filter to support GTurbo tune. Easy install with dig instructions. Thanks for your focus on bleeding the fuel system. The Troopy started on on the turn of the key as normal.
-
